Overview
-
Fingerless adsorption single facer
产品介绍

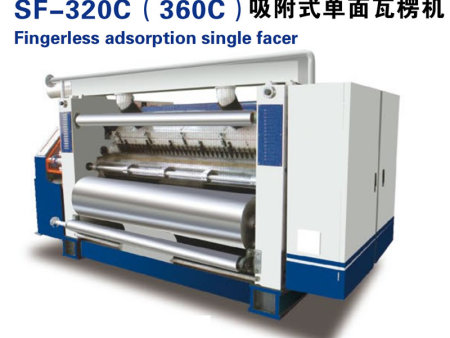

SF-320C（360C）吸附式单面瓦楞机
Fingerless adsorption single facer
用途与特点：
1、SF320C设计速度：150m/min SF360C设计速度：200m/min
2、有效幅宽：1400mm-2200mm
3、楞辊：φ320mm/360mm
4、驱动减速箱采用侵油润滑，减小噪音，万向节传动，隔离动力源
（选装）。
5、上瓦辊、压力辊、涂胶辊升降，均以气动控制。
6、导纸方式采用真空吸附，带风量调节装置，保持高速状态下瓦楞
楞型的稳定。
7、瓦辊、压力辊轴承采用耐高温润滑脂润滑。
8、涂胶部采用自动循环供胶。
9、上下瓦楞辊采用48CrMo优 质合金钢，经过热处理，硬度在
HV1200以上，表面碳化钨或镀硬铬处理。
10、涂胶辊表面经过网纹刻花及镀铬处理。
11、手动或电动隔胶装置。
Use and Characteristics:
1. Design speed of SF320C: 150m/min SF360C design speed: 200m/min 12、涂胶部停机可独立运转或不独立运转两种方式。
2. Effective width: 1400mm-2200mm
3. Corrugated roller diameter: φ320mm φ 360mm
4. Drive the gearbox to lubricate the oil, reduce the noise, the universal joint drive, and isolate the power source (optional).
5. Upper roller, pressure roller and rubber roller lift, all with pneumatic control.
6. The guide paper adopts vacuum adsorption, with air volume adjustment device, to maintain the stability of corrugated and corrugated form at
high speed.
7. The roller and pressure roller bearings are lubricated with high temperature resistance grease.
8. The glue is used for adhesive.
9. The upper and lower corrugated roller adopts 48CrMo high quality alloy steel, after heat treatment, hardness is above HV1200, surface
carbonized tungsten or hard chromium plating treatment.
10. The surface of the rubber roller is treated with the mesh cut and chrome plating.
11. Manual or electric separation device.
12. The glue department can be operated independently or independently in two ways.z
