双片式钉箱机 Semi-auto stitcher machine double piece

Previous： MY1200/1300/1500/1650半自动平压平模切机

Next： Semi-auto stitcher machine single piece

Overview

SBD-3000

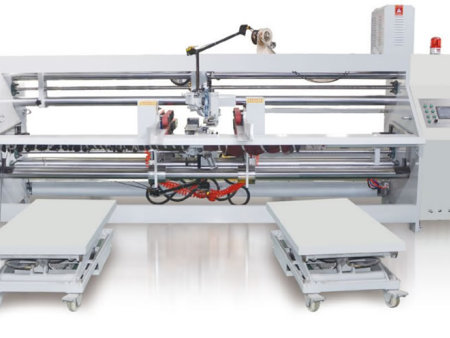

双片式钉箱机 Semi-auto stitcher machine double piece

SBD-3000

双片式钉箱机 Semi-auto stitcher machine double piece

双片式钉箱机 Semi-auto stitcher machin

用途与特点：

◆进口四伺服控置系统。

◆一台两用，可钉单片、双片、不规则纸箱。

◆尺寸采用全电动式控置。

◆可钉:单钉、双钉、加强钉一次完成。

◆送纸部自动计数，成品送出捆扎。

◆适用于中小型纸箱、装订快速而省力。

◆调整钉距，使用电脑设定自动调钉距。

◆适用于三五层中小型纸箱，有底无盖的纸箱也可钉，七层需定做（七层纸箱和有底无盖纸箱在定做机器时需说明）。

◆钉距（小—大）30mm—120mm可任意调节。

◆机械速度：500钉/分钟。

Use and Characteristics:

◆It can nail single nail, double nail, Strengthen nail completed in one-time, can be suitable for different kinds of customer

requirements of nails.

◆It can be changed size quickly in one minute, can be operated easily and not had to experience.

◆Paper feeding section can automatic count, send after the bundle into the bundle.

◆It is man-machine interface control for convenient opearation.

◆Back-automatic counting. The finished products done can be sent to the end of conveyor by setting the number(1-99).

◆Semi-finished products nailing to the finished products displayed only need two operators. This can operate simply and reduce wages

◆Adopt 4 servo motor, brand YASKAWA

◆Feeding unit auto counter

◆Computer adjust nail distance

◆Suit for 3-5ply standard carton box

◆Nail distance: 30-120mm

◆Speed: 500 nails/min
