Overview

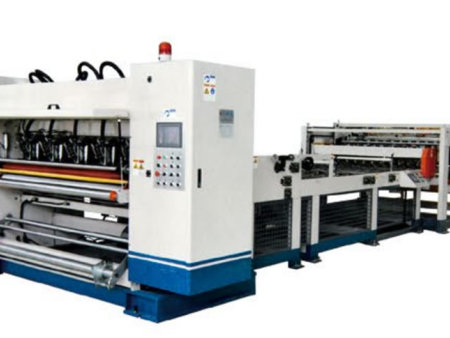

Computer single facer corrugated cutting and stacker

DHD-150 电脑单瓦纵横切纸机

Computer single facer corrugated cutting and stacker

Computer single facer corrugated

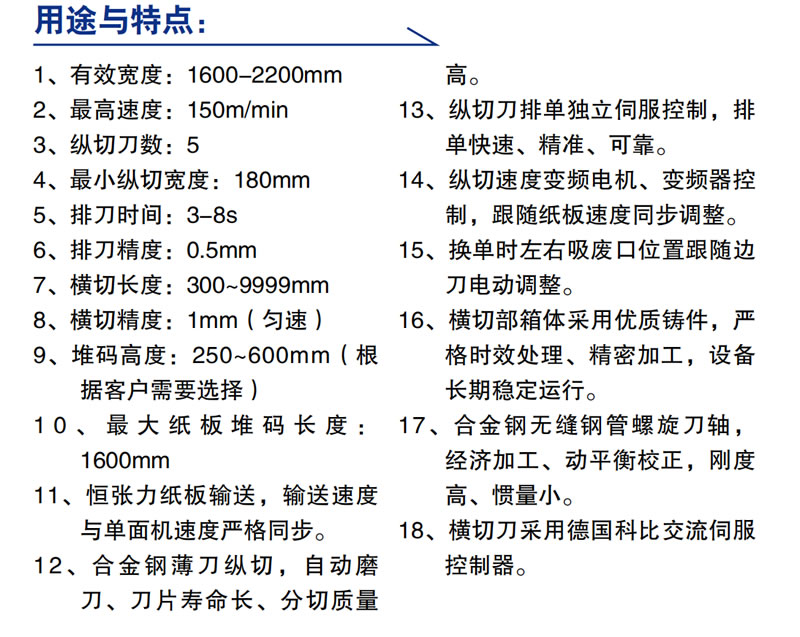

Use and Characteristics:

1. Effective width: 1600-2200mm

2. Maximum speed: 150m/min

3. The number of slitting knives: 5

4. Minimum slitting width: 180mm

5. Cutting time: 3-8s

6. Blade accuracy: 0.5mm

7. Cross-cutting length: 300~9999mm

8. Crosscutting accuracy: 1mm (constant speed)

9. Stacking height: 250~600mm (according to customers' needs)

10. Maximum carton length: 1600mm

11. Constant tension paperboard conveying speed is strictly synchronized with the speed of the single-side machine.

12. Alloy steel thin knife slitting, automatic grinding knife, blade life long, cutting quality high.

13. Single servo control with longitudinal cutting knife, the list is fast, accurate and reliable.

14. Adjust the speed inverter motor and frequency converter, adjust the speed of the board.

15. The position of the left and right suction side of the blade should be adjusted with the edge tool.

16. The crosscutting cabinet adopts high quality casting, strict aging treatment, precise processing, and long-term stable operation of the

equipment.

17. Alloy steel seamless steel tube spiral cutter shaft, economic processing, dynamic balance correction, high rigidity, small inertia.

18. Crosscutting knife USES the German kobe communication servo controller.
